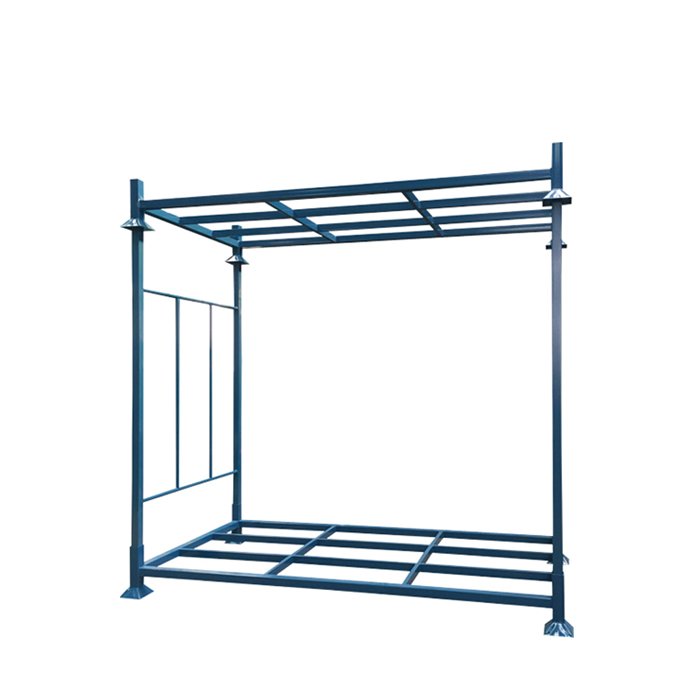

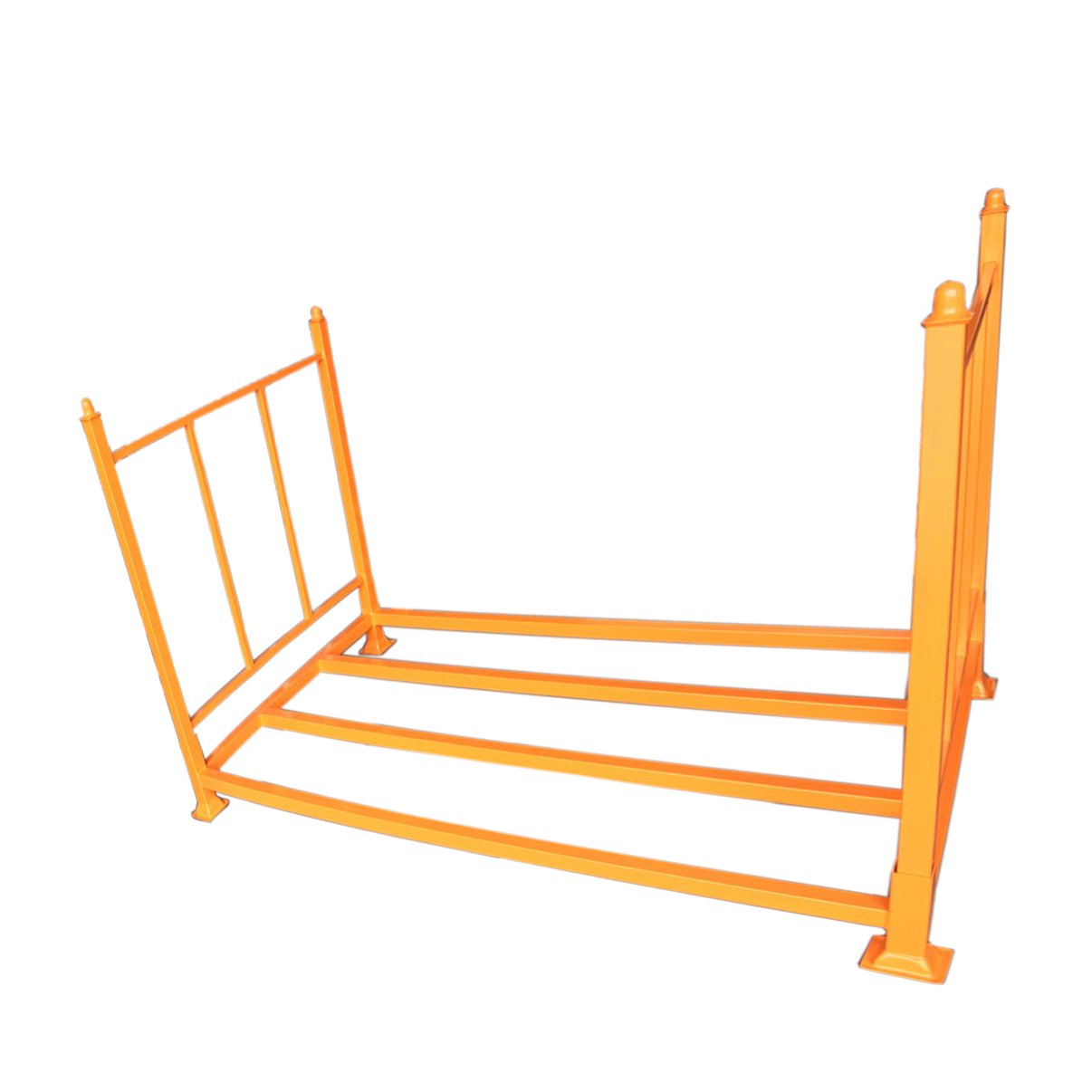

Model Number: HM-TR-LR
The lacing warehouse tire rack is a storage system for high volumes of PCR-SUV tires, which should be similar or identical since they need to be stored in an interlaced pattern. Interlaced storage saves a significant amount of space. A single rack can hold 34 to 50 PCR-SUV tires, depending on tire diameters, and the racks can be stacked 6 high. This warehousing solution offers one of the best space optimization rates. Many tire distribution centers and warehouses use the lacing rack with removable sides on their receiving docks to quickly unload tires from trucks. Although it is used mostly for warehousing, this tire rack can also be used to ship high volumes of tires.
See More! On our Tire Rack products.
Enquiry about Laced warehouse tire rack (For passenger & SUV tires)
Enter the security code shown above
Description
Specification
| Model No. | Exterior Dimension | Tire
capacity |
Loading
Capacity |
Max.
Stacked |
Max.
Stacked |
| LxWxH | pcs | open | closed | ||
| HM-TR-LR | 85″x 48 1/2″x 50″ | 24 to 32 pcs 34 to 50 PCR-SUV – 7 TBR pcs | 2400 lb. | 6 | 20 |
| Material | Mild steel Q235 | ||||
| Application Area | Warehouse, Logistics, Tyre, Auto Industry | ||||
| Finish | Powder coating | ||||
| Remark | Customized or OEM support | ||||
| Product Features | 1) Ideal solution for tires 2) Eliminates the need for wooden pallets for loose cargo. 3) Customized to suit your products and storage environment. 4) Assembled and disassembled within seconds. 5) When not in use can be stowed away in less than 10% of space 6) No maintenance required |
||||
Key benefits
√ Stackable modular racks
–easy to stack and move around with the fork truck
–rearrange floor space quickly and simply than pallet racking
√ Collapsible
–reduce shipping costs, save space during slower periods
–regain 80% storage space when folded
√ Optional bottom wire mesh & forklift guide
√ Powder coating finish with custom requires
Why HML
√ INNOVATIVE SOLUTIONS since 1993
√ BESPOKE DESIGN to your requirements
√ TRUSTED by customers nationalwide
√ OEM, ODM & CUSTOMIZED support
√ PUNCTUAL DELIVERY TIME for 7 production bases
√ ONE-STOP SERVICE from solution, manufacture to delivery
