Moedel Number: HM-TR7272

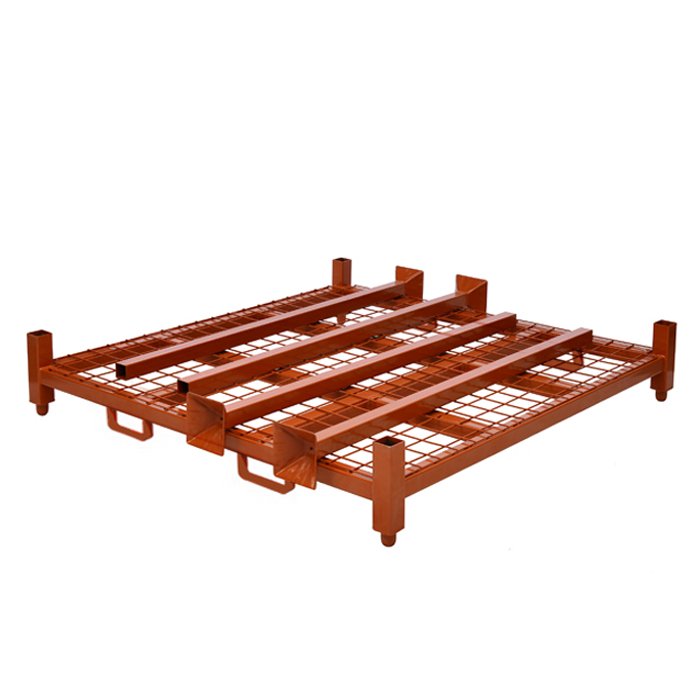

The 72” tyre rack was developed for customers who need to store a large volume of tires for passenger and light truck tires with bottom wire mesh and forklift guide. The 72” x 72” deck is optimized to hold 6 to 9 stacks of 7 to 9 tires.
The tyre rack is very durable and long-lasting, while still being significantly low on maintenance. Its unique design eliminates any damage to tires during storing and handling. The added advantage is that this storage solution is very cost-effective.
See More! On our Tire Rack products.
Enquiry about 72"x72" Tyre rack
Enter the security code shown above
Description
Specification
| Similar design, different sizes | |||||
| Model No. | Exterior
Dimension |
Tire
capacity |
Loading
Capacity |
Max.
Stacked |
Max.
Stacked |
| LxWxH | pcs | open | closed | ||
| HM-TR6060 | 60″x60″x60″ | 24 to 32 | 2400 lb. / 1100 kg | 4 | 20 |
| HM-TR7272 | 72″x72″x72″ | 42 to 63 | 2400 lb. / 1100 kg | 4 | 20 |
| HM-TR8080 | 80″x80″x60″ | 20 | 2400 lb. / 1100 kg | 4 | 20 |
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, Logistics, Tyre, Auto industry | ||||
| Finish | Powder coating | ||||
| Remark | Customized or OEM support | ||||
Key benefits
√ Portable modular racks
–easy to stack and move around with the fork truck
–rearrange floor space quickly and simply than pallet racking
√ Removable posts
–reduce shipping costs, save space during slower periods
–regain 80% storage space when folded
√ Optional bottom wire mesh & forklift guide
√ Powder coating finish with custom requires
Why HML
√ INNOVATIVE SOLUTIONS since 1993
√ BESPOKE DESIGN to your requirements
√ TRUSTED by customers nationalwide
√ OEM, ODM & CUSTOMIZED support
√ PUNCTUAL DELIVERY TIME for 7 production bases
√ ONE-STOP SERVICE from solution, manufacture to delivery
Related Products
-
Stacking Tire Pallet Rack
Model Number: HM-TR-FD
The Passenger and Light Truck tire pallet rack for Tires is much more versatile than the pallet racking or mezzanines used all too often in tire warehouses. These portable modular racks are easy to stack and move around with a fork truck. Moreover, they help you quickly and simply rearrange your floor space, and require less handling time than pallet racking. Each folding & stacking tire rack can hold 28 to 32 tires stored on their treads. Thus, each tire is easily accessible and different tire makes, sizes and types can be stored in the same rack. With the four middle bars removed, 40 to 50 interlaced tires can be stored. This configuration accommodates the greatest number of tires per square foot (35% more than on treads). This type of storage is a highly economical solution for large volumes.
See More! On our Tire Rack products.
-
Metal tire shipping rack
Model Number: HM-TR10
The Metal Tire Shipping Rack is designed to move large numbers of tires from place to place or load them into the trailer. It’s easier to move around and reduces space requirements. A 53-foot truck can hold 28 shipping racks (14 deep by 2 high). They require three times less loading and unloading time than traditional wooden pallets and, according to our clients, one employee can load or unload a 53-foot trailer in just 24 minutes. The tires must be interlaced in the shipping rack to make the most of available vehicle space or warehouse space.
See More! On our Tire Rack products.
-
60″x60″ Tire stacking rack
Model Number: HM-TR6060
The 60” tire stacking rack was developed for customers who need to store a large volume of tires for passenger and light tires. The 60” x 60” deck is optimized to hold 4 or 5 stacks of 7 or 8 tires for warehouse storage.
Tires themselves are usually stored directly on the floor and cannot be stacked higher because of their weight and instability in tall stacks. So a stacking tire rack can be a very economical and safe way to store tyres. A forklift with clamps is required, and removable posts make it easy to work with the rack.
See More! On our Tire Rack products.
-
Tire Storage Rack(Wheel & Rim Rack)
Model Number: HM-TR-UTR
The Wheel and Rim Tire Storage Rack, has been specially designed for storing Tire wheels and rims vertically. This flexible, mobile storage unit allows you to reduce wheel handling to a minimum and prepare your winter tire orders for mounting on rims. The rack can hold 8 or 9 wheels per row, placed side by side, three rows deep and three rows high. The rack can be folded down to save floor space during slower periods. When folded, 80% of the storage space is regained. The utility tire and rim rack was specifically designed for small tires used on vehicles such as ATVs, lawn tractors and golf carts.
See More! On our Tire Rack products.
-
Metal Tire Rack
Model Number: HM-TR-TBR
The Metal Tire Racks are used for stacked storage of tires for heavy trucks, buses and farm machinery. This versatile and economical modular warehousing solution is very popular. The pallet base is optimized to hold 2 stacks of 6 or 7 tires depending on their diameter. It is equipped with four removable corner posts to reduce shipping costs and save space in the tire warehouse during slower periods. When removed, the posts are stowed flat between stacked pallet frames. A forklift with clamps is needed to work with this rack.
See More! On our Tire Rack products.
-
80″x80″ Tire pallet
Model Number: HM-TR8080
The 80” truck tire pallet was developed for customers who need to store a large volume of tires for heavy trucks and buses, but also to store big OTR tires for farm and mining machinery, for example. The 80” x 80” deck is optimized to hold 4 stacks of 5 heavy truck and bus tires, or 2 or 3 OTR tires up to 100” in diameter. Big tires are usually stored directly on the floor, stacked 4-6 high. They cannot be stacked higher because of their weight and instability in tall stacks. As a result, this rack can be a very economical and safe way to store big tires. A forklift with clamps is required, and removable posts make it easy to work with the rack.
See More! On our Tire Rack products.
