Model Number: HM-CP-EU009
Our wire mesh pallet cages are designed to safely store packaged or loose items during transport or when they are not being used. The cages can easily be transported around a workplace by forklift or pallet trolley, to meet the requirements of any warehouse application and for Retail and Supermarkets.

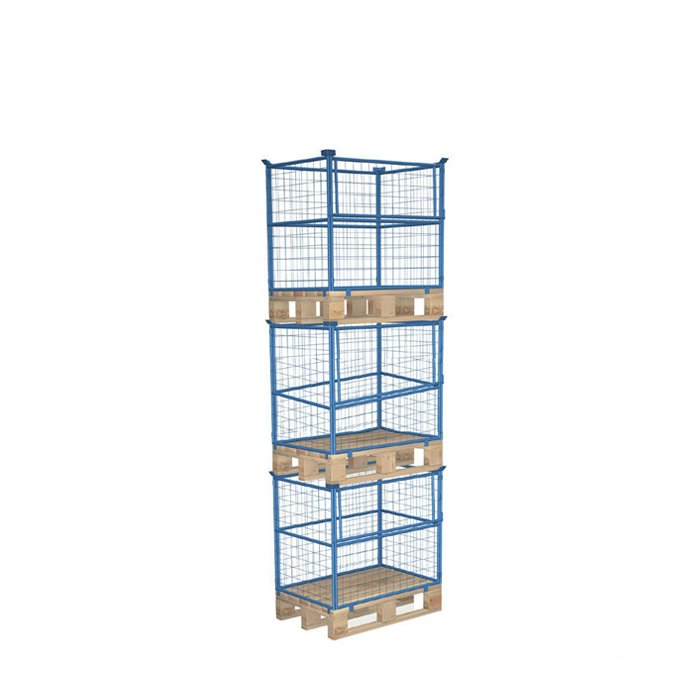

The Metal Pallet Cage is stackable, durable, and economical. They feature a timber base construction with heavy-duty frames. Compared to other similar cage pallets, the load capacity of the Pallet Converter Cage is increased due to this modular design. A galvanized sheet metal flooring can be supplied to prevent items from falling between the pallet spaces, fitting over the existing pallet.
See for More! Cage Pallet products.
Enquiry about Metal pallet cage
Enter the security code shown above
Description
Specification
| External dimension | 1200x800x1200 mm |
| Grid dimension | 100×100 mm |
| Wire guage | Φ4 mm |
| Safe working load | 800 kg |
| Stackability | 4 high |
| Loaded units / 40HQ | 261 |
| Finish | Zinc/hot-dip galvanized/powder coat |
Key benefits
√ Sizes are available to suit your pallet sizes
√ Excellent ventilation: open mesh
√ Improved access to inventory: half hinged gate allows for direct access to inventory
√ Maximize floor space: vertical storage, stack up to 4 high
√ Fully collapsible: eliminate storage space when not in use & lower freight costs by returning more empty cages
√ One person handling: easily setup & breakdown in a minute
