Model Number: HML-F1

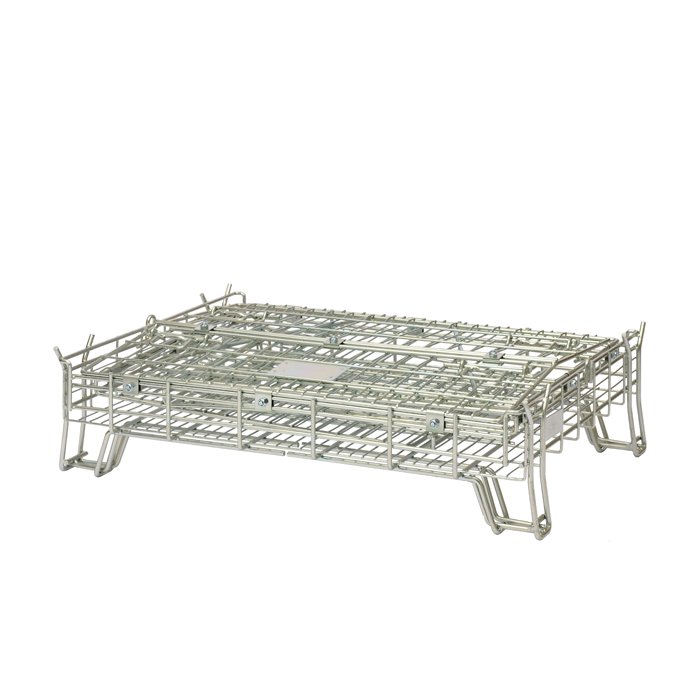

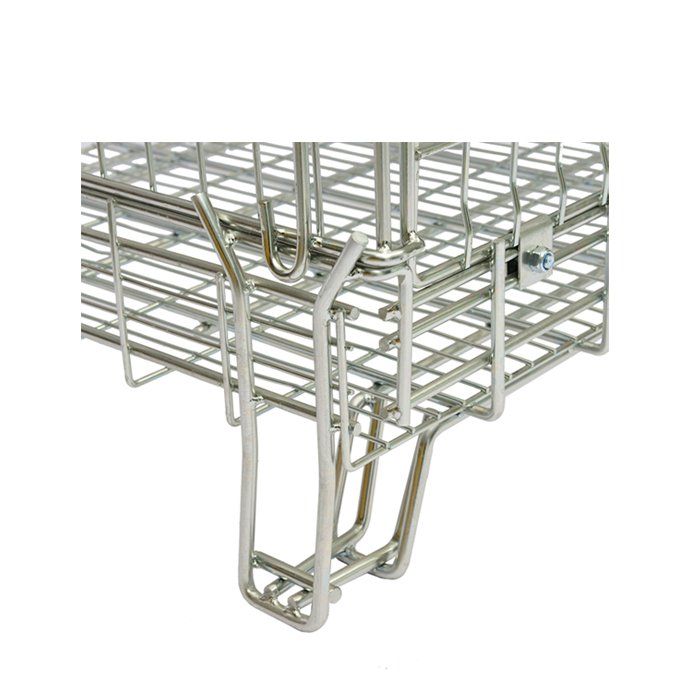

This wire mesh container can be used for wine storage in the Wine Industry. Allowing the load of 500 bottles of “Bourgogne”. The cage can achieve 500kg – 800kg loading capacity.
See More! On Our Wire Mesh Container — EU series products.
Description
Specification
| External dimension | 1140x830x980 mm |
| Grid dimension | 55×113 mm |
| Wire guage | ￠12-￠5.0 mm |
| Safe working load | 800 kg |
| Stackability | 4+1 high |
| Loaded units / 40HQ | 332 |
| Finish | Zinc/hot-dip galvanized/powder coat |
| Wine storage | 500 bottles “Bourgogne” |
Key benefits
√ Improved access to inventory: half drop down gates for direct access √ Maximize floor space: vertical storage, stack up to 4 high √ Fully collapsible: save space when not in use & lower freight costs by transporting more empty containers √ Easy setup & breakdown: assemble in a minute by simple steps √ Easily moved around by forklift, even when fully loaded √ Mainly used to transport and store bottles in wine cellarsVideos
Why HML
√ INNOVATIVE SOLUTIONS since 1993 √ BESPOKE DESIGN to your requirements √ TRUSTED by customers nationalwide √ OEM, ODM & CUSTOMIZED support √ PUNCTUAL DELIVERY TIME for 7 production bases √ ONE-STOP SERVICE from solution, manufacture to deliveryRelated Products
-
